Home> Products > Fiber optic cable > For Distributed Base Stations

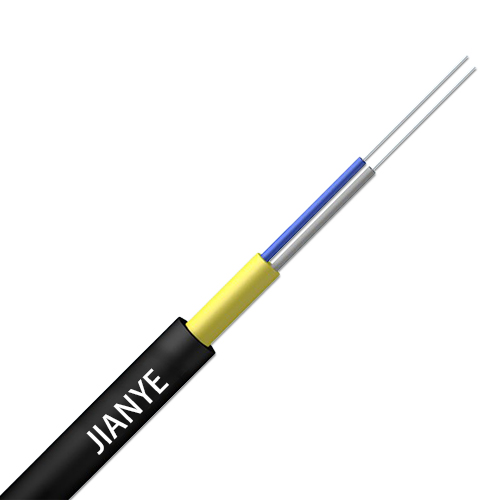

JIANYE Tight Buffered Micro Optical Cable(GJYWFJH)
JIANYE Tight Buffered Micro Optical Cable(GJYWFJH)

JIANYE Tight Buffered Micro Optical Cable(GJYWFJH)

Item No.: 036
INQUIRY
Description
*Optical cable indoor and outdoor optical and electrical function for Distributed Base Stations

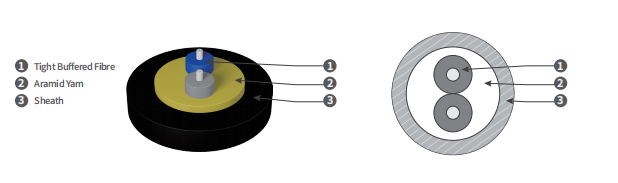

Tight buffered fibres are surrounded with a layer of aramid yarns as the strength member. Then a LSZH sheath is extruded. The strength member can be made of other high-strength yarns and other sheath materials are available on request.

Features

• Good mechanical and temperature performances
• Good crush resistance and flexibility
• Small size and light weight, supporting bulk data transmission
• Mainly applied to horizontal and vertical cabling at wireless base stations, applicable to FTTA(fibre to the antenna)



Technical Characteristic



Type

Fibre diameter

(mm)

Cable diameter

(mm)

Cable weight

(Kg/km)

Tensile strength

Long/short term (N)

Crush

Long/short term

（N/100mm）

Bending radius

Dynamic/static (mm)
GJYWFJH-02Xn 0.9 4.8 28.3 200/400 500/1000 20D/10D



Environmental Characteristic

• Transport/storage temperature: -20℃ to +60℃

Delivery Length

• Standard length: 2,000m; other lengths are also available.
