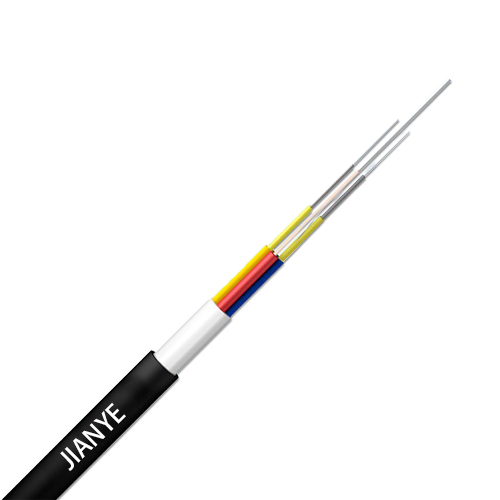

JIANYE Hy brid Optical and Electrical Cable (GDFJAH)
JIANYE Hy brid Optical and Electrical Cable (GDFJAH)

JIANYE Hy brid Optical and Electrical Cable (GDFJAH)

Item No.: 037
INQUIRY
Description
*Optical cable indoor and outdoor optical and electrical function for Distributed Base Stations

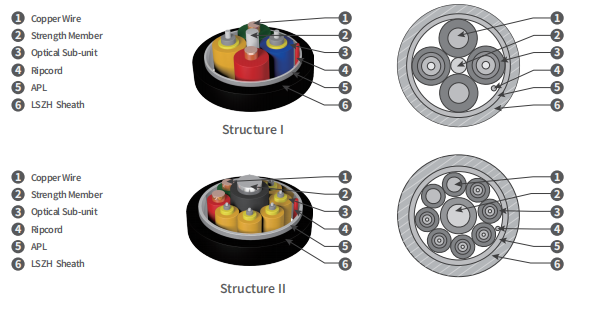

Tight buffered fibres are surrounded with a layer of aramid yarns as the strength member. A LSZH inner sheath is extruded on the tight buffered fibre to form an optical sub-unit. Then optical sub-units and copper wires are stranded around a non-metallic central strength member to form a cable core. The core is armored with laminated aluminum tape. Finally, a LSZH outer sheath is extruded. Other sheath materials are available on request.

Features

• Good mechanical and temperature performances
• Excellent crush resistance and flexibility
• All-dry hy brid structure, supporting bulk data transmission and power supply for RRU devices
• Mainly applied to local fibre remote for short distance at wireless base stations, applicable to the construction of indoor distributed base stations



Technical Characteristics


Type

Type of

structure

Cable diameter

(mm)

Cable weight

(Kg/km)

Tensile strength

Long/short term (N)

Crush

Long/short term

（N/100mm）

Bending radius

Dynamic/static (mm)
GDFJAH-2Xn+2*0.75 I 7.5 80 200/400 500/1000 20D/10D
GDFJAH-2Xn+2*1.0 I 8.0 88 200/400 500/1000 20D/10D
GDFJAH-2Xn+2*1.5 I 9.6 105 200/400 500/1000 20D/10D
GDFJAH-2Xn+2*2.0 I 10.3 119 200/400 500/1000 20D/10D
GDFJAH-2Xn+2*4.0 I 11.5 159 200/400 500/1000 20D/10D
GDFJAH-6Xn+2*0.5 II 10.5 110 200/400 500/1000 20D/10D

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃

Delivery Length

• Standard length: 2,000m; other lengths are also available.
