Fiber Optic Cable Structure&Description
| Number | Cable Structure | Description |
|---|---|---|
| Note: The cable structures listed in the table are basic types recommended. Cable structure can be customized. | ||
| 025 |  |
GYXTC8A(S) ·Uni-tube:high modulus plastic,filled with tube filling compound · Messenger:steel wire ·Armor: laminated aluminum tape(or corrugated steel tape) ·Outer sheath: black PE sheath |
| 026 |  |

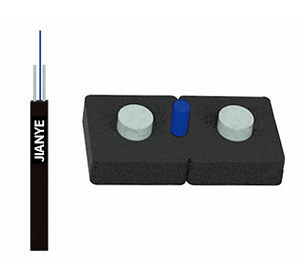

GJXFH · Optical fibre in central · Strength member:two FRPsin parallel · Outer sheath: black LSZH sheath |
| 027 |  |
GJXH · Optical fibre in central ·Strength member:two steel wires in parallel · Outer sheath: black LSZH sheath |
| 028 |  |
GJXFDH/GJXDH · Fibre ribbon in central · Strength member: two FRPs(or steel wires)in parallel · Outer sheath: black LSZH sheath |
| 029 |  |
GJYXFCH/GJYXCH · Optical fibre in central ·Strength member:two FRPs(or steel wires) in parallel · Messenger: steel wire · Outer sheath: black LSZH sheath |
| 030 |  |

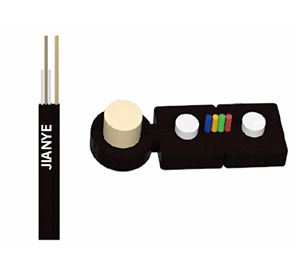

GJYXFDCH/GJYXDCH · Fibre ribbon in central · Strength member:two FRPs(or steel wires) in parallel · Messenger: steel wire · Outer sheath: black LSZH sheath |
| 031 |  |

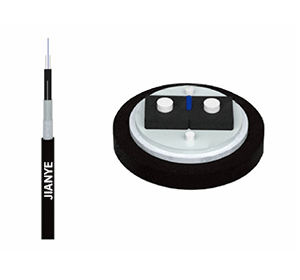

GJYXFHA/GJYXFHS · A bow-type drop optical cable in central · Strength member: two FRPs in parallel · Longitudinal water blocking material: water blocking tape and yams · Armor: laminated aluminum tape(or corrugated steel tape) · Outer sheath: black PE sheath |
| 032 |  |
GJYXFH03 · A bow-type drop optical cable in central · Strength member:two FRPs in parallel ·Longitudinal water blocking material: water blocking tape and yams · Outer sheath: black PE sheath |
