Fiber Optic Cable Structure&Description
| Number | Cable Structure | Description |
|---|---|---|
| Note: The cable structures listed in the table are basic types recommended. Cable structure can be customized. | ||
| 013 |  |
GYFY63 · Stranded loose tube: high modulus plastic,filled with tube filling compound · Central strength member:FRP or PE-coated FRP ·Longitudinal water blocking material: water blocking tape and yams ·Inner sheath: black PE sheath · Non-metallic armor: glass fibre yarns · Outer sheath: black PE sheath |
| 014 |  |
GYFTA53 · Stranded loose tube:high modulus plastic,filled with tube filling compound · Central strength member:FRP or PE-coated FRP ·Longitudinal water blocking material:cable filling compound ·Armor:laminated aluminum tape · Inner sheath:black PE sheath · Armor:corrugated steel tape · Outer sheath: black PE sheath |
| 015 |  |

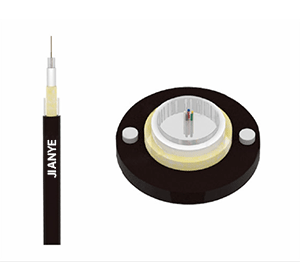

GY(F)XTY · Uni-tube: high modulus plastic,filled with tube flling compound ·Strength member:two FRPs (or steel wires) in parallel ·Outer sheath: black PE sheath |
| 016 |  |
GYXTW · Uni-tube:high modulus plastic,flled with tubefilling compound · Strength member:two steel wires in parallel · Armor:corrugated steel tape · Outer sheath: black PE sheath |
| 017 |  |
GYDTA ·Stranded loose tube(fibre ribbons):high modulus plastic, flled with tube filling compound · Central strength member: steel wire or PE-coated steel wire · Longitudinal water blocking material: cable filling co mpound · Armor: laminated aluminum tape · Outer sheath: black PE sheath |
| 018 |  |

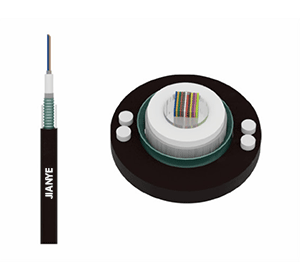

GYDXTW ·Uni-tube(fibreribbons):high modulus plastic,filled with tube filling compound · Strength member:four steel wires in parallel · Armor:corrugated steel tape ·Outer sheath: black PE sheath |
| 019 |  |

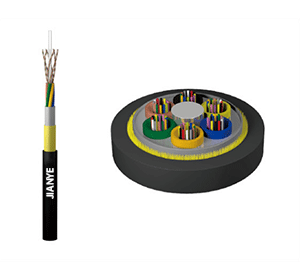

ADSS-I ·Stranded loose tube: high modulus plastic,filled with tube filling compound · Central strength member: FRP or PE-coated FRP · Longitudinal water blocking material: water blocking tape and yarns ·Non-metallic armor:aramid yarns ·Outer sheath: black PE sheath(or anti-tracking sheath) |
| 020 |  |
ADSS-II ·Stranded loose tube:high modulus plastic,filled with tube filling compound · Central strength member: FRP or PE-coated FRP ·Longitudinal water blocking material:water blocking tape and yarns · Inner sheath: black PE sheath · Non-metallic armor: aramid yarns ·Outer sheath: black PE sheath(or anti-tracking sheath) |
| 021 |  |
ADSS-III ·Stranded loose tube:high modulus plastic,filled with tube filling compound · Central strength member:FRP or PE-coated FRP ·Longitudinal water blocking material:cable filling compound ·Inner sheath: black PE sheath ·Non-metallicarmor: aramid yarns · Outer sheath: black PE sheath(or anti-tracking sheath) |
| 022 |  |
GY(F)TC8A(S) · Stranded loose tube: high modulus plastic,flled with tube filling compound · Central strength member:steel wire (or FRP)or PE-coated steel wire (or FRP) · Longlitudinal water blocking material: cable filling co mpound · Messenger:stranded steel wires · Armor:laminated aluminum tape(or corrugated steel tape) · Outer sheath: black PE sheath |
| 023 |  |
GYFC8Y · Stranded loose tube:high modulus plastic,filled with tube filling compound · Central strength member:FRP or PE-coated FRP · Longitudinal water blocking material: water blocking tape and yams · Messenger:stranded steel wires · Outer sheath: black PE sheath |
| 024 |  |
GYFC8Y53 · Stranded loose tube: high modulus plastic,filled with tube filling compound · Central strength member: FRP or PE-coated FRP ·Longitudinal water blocking material: water blocking tape and yams · Messenger:stranded steel wires · Inner sheath: black PE sheath · Armor: corrugated steel tape · Outer sheath: black PE sheath |
