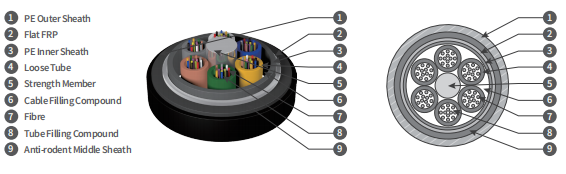

• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing key protection for fibres
• Combination of physical and chemical anti-rodent methods
• Flat FRP armor providing the physical anti-rodent performance
• Anti-rodent sheath providing the chemical anti-rodent performance, which effectively delays the diffusion of anti-rodent additives to protect working environment and construction safety
• All-dielectric design, applicable to lightning-prone areas
• Applicable to aerial and duct installations with anti-rodent and anti-lightning requirements
Technical Characteristics
| Type GYFTY83(FS | Units |
Max. fibre count per tube |
Diameter (mm) |
Cable weight (kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term （N/100mm） |
Bending radius Dynamic/static (mm) |
|---|---|---|---|---|---|---|---|
| 2-72Xn | 6 | 12 | 14.0 | 190 | 1500/4500 | 1000/3000 | 15D/25D |
Note:
1. Xn refers to fibre type. For details, see naming rules for optical cables of JIANYE.
2. For color arrangement of fibres and loose tubes, see the color sequence.
3. D is cable diameter.
• Transport/storage temperature: -40℃ to +70℃
• Standard length: 4,000m; other lengths are also available.
