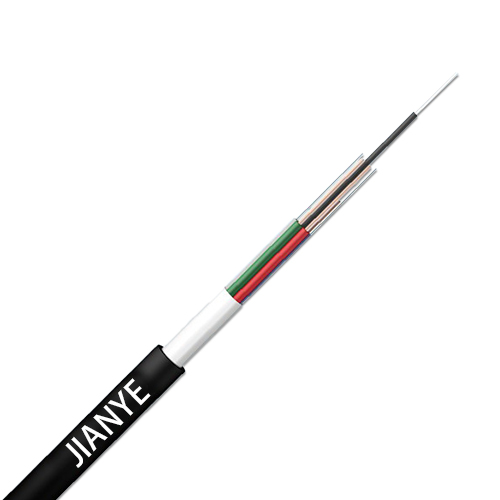

*Optical cable indoor and outdoor optical and electrical function for Distributed Base Stations
Single-mode/multimode fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. In the center of cable is a metallic strength member. The tubes and copper wires (of required specifications) are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with laminated aluminum tape. Then, a PE sheath is extruded.
• Accurate process control ensuring good mechanical and temperature performances
• Optical and electrical hy brid design, solving the problem of power supply and signal transmission and providing the centralized monitoring and maintenance of power for equipment
• Improving manageability of power and reducing coordination and maintenance of power supply
• Reducing procurement costs and saving construction costs
• Mainly used to connect BBU and RRU in DC remote power supply system for distributed base station
• Applicable to duct and aerial installations
Technical Characteristics
| Type |
O.D. (mm) |
Weight (Kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term （N/100mm） |
Structure |
|---|---|---|---|---|---|

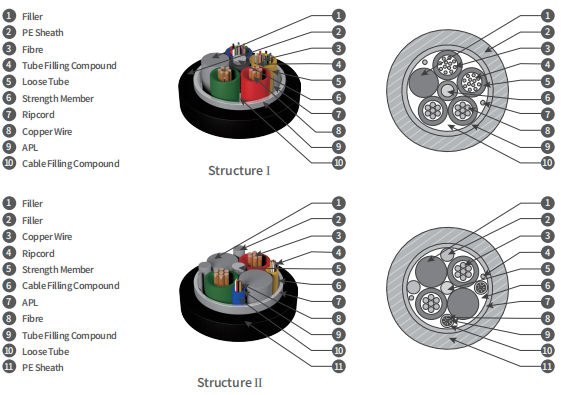

| GDTA-02-24Xn+2×1.5 | 11.2 | 132 | 600/1500 | 300/1000 | Structure I |
| GDTA-02-24Xn+2×2.5 | 12.3 | 164 | 600/1500 | 300/1000 | Structure I |
| GDTA-02-24Xn+2×4.0 | 14.4 | 221 | 600/1500 | 300/1000 | Structure II |
| GDTA-02-24Xn+2×5.0 | 14.6 | 258 | 600/1500 | 300/1000 | Structure II |
| GDTA-02-24Xn+2×6.0 | 15.4 | 287 | 600/1500 | 300/1000 | Structure II |
| GDTA-02-24Xn+2×8.0 | 16.5 | 350 | 600/1500 | 300/1000 | Structure II |
Note:
1. Xn refers to fibre type.
2. 2*1.5/2*2.5/2*4.0/2*6.0/2*8.0indicates the number and size of copper wires.
3. Hy brid cables with different numbers and sizes of copper wires can be provided on request.
4. Hy brid cables with different fibre counts can be provided on request.
Electrical Performance of Conductor| Cross section (mm2) |
Max. DC resistance of single conductor (20 ℃)(Ω/km) |
Insulation resistance (20℃)(MΩ.km) | Dielectric strength KV, DC 1minDielectric strength KV, DC 1min | ||
|
Between each conductor and other metal members connected in cable |
Between conductors |
Between conductor and metallic armor |
Between conductor and steel wire |
||
| 1.5 | 13.3 | No less than 5,000 | 5 | 5 | 3 |
| 2.5 | 7.98 | ||||
| 4.0 | 4.95 | ||||
| 5.0 | 3.88 | ||||
| 6.0 | 3.30 | ||||
| 8.0 | 2.47 | ||||
• Transport/storage temperature: -40℃ to +70℃
• Standard length: 2,000m; other lengths are also available.
