Home> Products > Fiber optic cable > For Distributed Base Stations

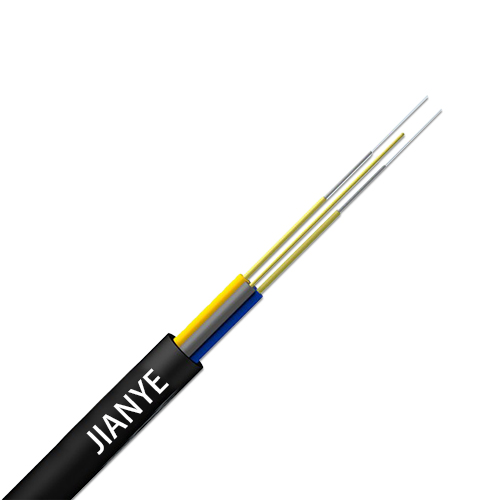

JIANYE Tight Buffered Optical Cable(GJYFJH)
JIANYE Tight Buffered Optical Cable(GJYFJH)

JIANYE Tight Buffered Optical Cable(GJYFJH)

Item No.: 040
INQUIRY
Description
*Optical cable indoor and outdoor optical and electrical function for Distributed Base Stations

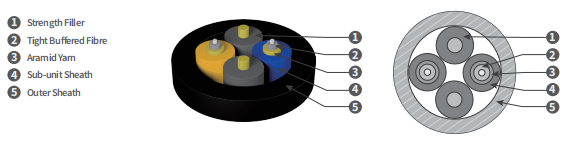

Tight buffered fibres are surrounded with a layer of aramid yarns as the strength member. A LSZH inner sheath is extruded on the tight buffered fibre to form an optical sub-unit. Then optical sub-units and fillers are stranded into a cable core. Finally, a LSZH sheath is extruded outside the core. The fillers can be made of other high-strength yarns and other sheath materials are available on request.

Features

• Good mechanical and temperature performances
• Excellent crush resistance and flexibility
• Small size and light weight, supporting bulk data transmission
• Mainly applied to horizontal and vertical cabling at wireless base stations, applicable to FTTA(fibre to the antenna)

Technical Characteristics


Type

Optical unit

diameter (mm)

Cable diameter

(mm)

Cable weight

(Kg/km)

Cable weight

(Kg/km)

Crush

Long/short term

（N/100mm

Bending radius

Dynamic/static (mm)
GJYFJH-02Xn 2.0 7.0 42.3 200/400 500/1000 20D/10D

Environmental Characteristic

• Transport/storage temperature: -20℃ to +60℃

Delivery Length

• Standard length: 2,000m; other lengths are also available.
