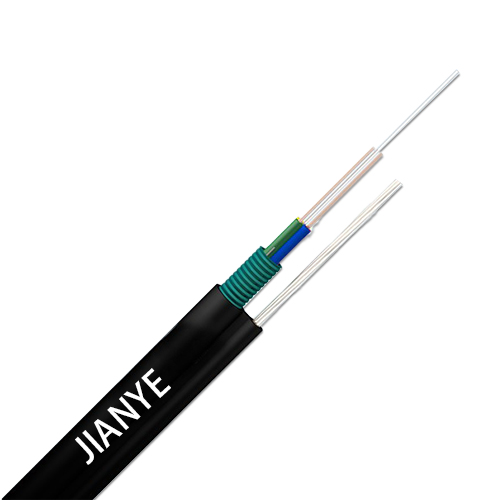

JIANYE Figure-8 Hy brid Optical and Electrical Cable(GDTC8S)
JIANYE Figure-8 Hy brid Optical and Electrical Cable(GDTC8S)

JIANYE Figure-8 Hy brid Optical and Electrical Cable(GDTC8S)

Item No.: 042
INQUIRY
Description
*Optical cable indoor and outdoor optical and electrical function for Distributed Base Stations

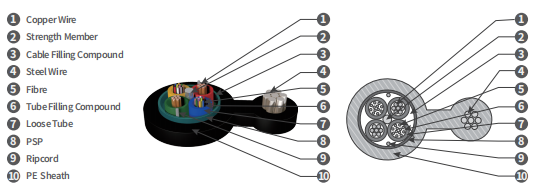

Single-mode/multimode fires are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. In the center of cable is a metallic strength member. The tubes and copper wires are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with corrugated steel tape. Stranded steel wires are applied as the messenger. Finally, a figure-8 PE outer sheath is extruded.

Features

• Accurate process control ensuring good mechanical and temperature performances
• Optical and electrical hy brid design, solving the problem of power supply and signal transmission and providing the centralized monitoring and maintenance of power for equipment
• Improving manageability of power and reducing coordination and maintenance of power supply
• Reducing procurement costs and saving construction costs
• Mainly used to connect BBU and RRU in DC remote power supply system for distributed base station
• Applicable to self-supporting aerial installation


Technical Characteristics


Type

Cable size

Cable diameter * cable height

(mm)

Cable weight

(Kg/km)

Tensile strength

Long/short term (N)

Crush

Long/short term

(N/100mm)

Bending radius

Dynamic/static (mm)
GDTC8S-2-24Xn+2×2.5 13.1×20.6 297 1000/3000 1000/3000 20D/10

Note: Xn refers to fibre type. D is cable diameter. Cross sectional area of copper wires for this type of optical cable is 2.5mm2.


Environmental Characteristic


• Transport/storage temperature: -40℃ to +70℃


Delivery Length


• Standard length: 2,000m; other lengths are also available.
