• Accurate process control ensuring good mechanical and temperature performances
• Optical and electrical hy brid design, solving the problem of power supply and signal transmission and providing the centralized monitoring and maintenance of power for equipment
• Improving manageability of power and reducing coordination and maintenance of power supply
• Reducing procurement costs and saving construction costs
• Mainly used to connect BBU and RRU in DC remote power supply system for distributed base station
• Applicable to buried installation
Technical Characteristics
| Type |
O.D. (mm) |
Weight (Kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term （N/100mm） |

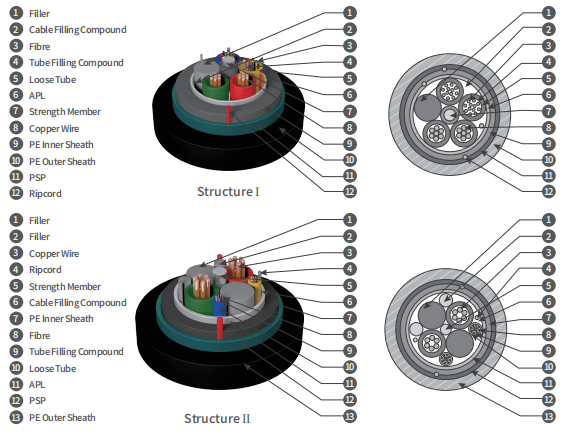

Structure |
|---|---|---|---|---|---|
| GDTA53-02-24Xn+2*1.5 | 15.1 | 290 | 1000/3000 | 1000/3000 | Structure I |
| GDTA53-02-24Xn+2*2.5 | 15.5 | 312 | 1000/3000 | 1000/3000 | Structure I |
| GDTA53-02-24Xn+2*4.0 | 18.2 | 358 | 1000/3000 | 1000/3000 | Structure II |
| GDTA53-02-24Xn+2*5.0 | 18.6 | 390 | 1000/3000 | 1000/3000 | Structure II |
| GDTA53-02-24Xn+2*6.0 | 19.9 | 435 | 1000/3000 | 1000/3000 | Structure II |
| GDTA53-02-24Xn+2*8.0 | 20.8 | 478 | 1000/3000 | 1000/3000 | Structure II |
| Cross section (mm2) |
Max. DC resistance of single conductor (20 ℃)(Ω/km) |
Insulation resistance (20℃)(MΩ.km) | Dielectric strength KV, DC 1minDielectric strength KV, DC 1min | ||
|
Between each conductor and other metal members connected in cable |
Between conductors |
Between conductor and metallic armor |
Between conductor and steel wire |
||
| 1.5 | 13.3 | No less than 5,000 | 5 | 5 | 3 |
| 2.5 | 7.98 | ||||
| 4.0 | 4.95 | ||||
| 5.0 | 3.88 | ||||
| 6.0 | 3.30 | ||||
| 8.0 | 2.47 | ||||
• Transport/storage temperature: -40℃ to +70℃
• Standard length: 2,000m; other lengths are also available.
