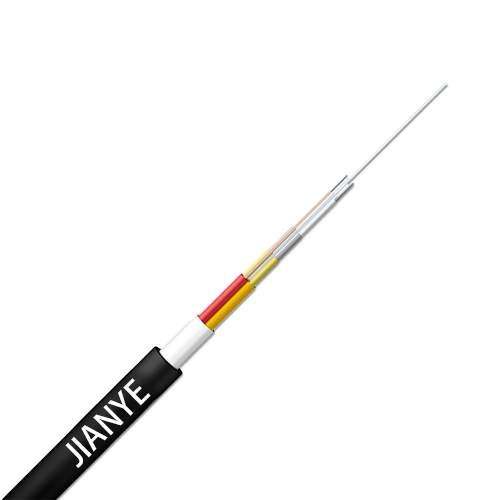

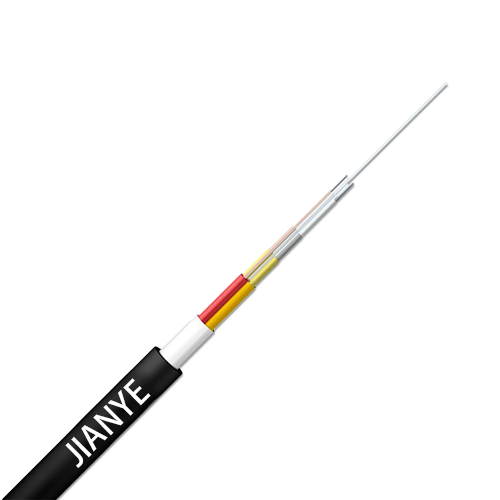

JIANYE hy brid Optical and Electrical Cable (GDFKJH)
JIANYE hy brid Optical and Electrical Cable (GDFKJH)

JIANYE hy brid Optical and Electrical Cable (GDFKJH)

Item No.: 034
INQUIRY
Description
*Optical cable indoor and outdoor optical and electrical function for Distributed Base Stations

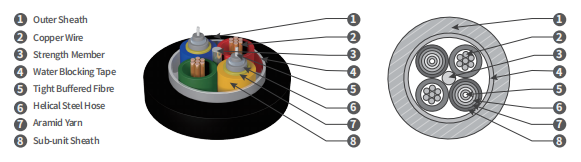

Tight buffered fibres are surrounded with a helical steel hose and a layer of aramid yarns as the strength member, and then a LSZH sheath is extruded to form an optical sub-unit. Optical sub-units and copper wires are stranded around a non-metallic central strength member to form a cable core. The core is wrapped with water blocking tape. Finally, a LSZH outer sheath is extruded. Other sheath materials are available on request.

Features


• Good mechanical and temperature performances
• Stainless steel hose armor providing better protection to fibres
• Good crush resistance and flexibility
• All-dry hy brid structure, supporting bulk data transmission and power supply for RRU devices
• Mainly applied to local fibre remote for short distance at wireless base stations, applicable to the construction of indoor distributed base stations



Technical Characteristics
Type

Optical unit diameter

(mm)

Cable diameter

(mm)

Cable weight

(Kg/km)

Tensile strength

Long/short term (N)

Crush

Long/short term

（N/100mm）

Bending radius

Dynamic/static (mm)
GDFKJH-2Xn+2*1.5 3.0 9.5 110 400/800 500/1000 20D/10D

Environmental Characteristic

• Transport/storage temperature: -20℃ to +60℃

Delivery Length

• Standard length: 1,000m; other lengths are also available.
