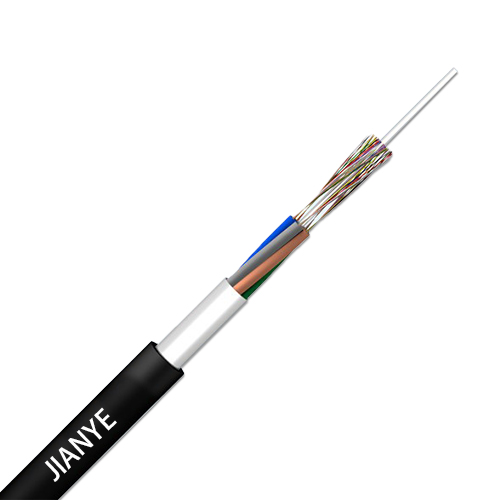

JIANYE Anti-rodent & Anti-bird Optical Cable(GYKTS)
JIANYE Anti-rodent & Anti-bird Optical Cable(GYKTS)

JIANYE Anti-rodent & Anti-bird Optical Cable(GYKTS)

Item No.: 024
INQUIRY
Description
*Optical cable designed anti-animal materials and structures to prevent damage of birds or rodents animal.

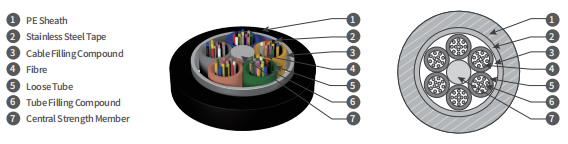

GYKTS is a kind of outdoor communication optical cable, which consists of a central metallic strength member, stranded loose tubes, a stainless steel tape armor and a PE outer sheath. Single-mode fibres are housed in loose tubes that are made of high modulus plastic and filled with tube filling compound. The tubes are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with stainless steel tape. Then a PE outer sheath is extruded.

Features

• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing key protection for fibres
• Metallic armor providing good anti-rodent performance
• Excellent crush resistance
• Applicable to duct and aerial installations

Technical Characteristics


Type Units

Cable diameter

(mm)

Cable weight

(Kg/km)

Tensile strength

Long/short term (N)

Crush

Long/short term

(N/100mm)

Bending radius

Dynamic/static (mm)
GYKTS-02~30Xn 5 9.8 108 600/1500 1000/2000 20D/10D
GYKTS-32~36Xn 6 10.4 129 600/1500 1000/2000 20D/10D
GYKTS-38~60Xn 5 10.6 132 600/1500 1000/2000 20D/10D
GYKTS-62~72Xn 6 12.1 161 600/1500 1000/2000 20D/10D


Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃

Delivery Length

• Standard length: 4,000m; other lengths are also available.
