JIANYE (All-dry) Stranded Loose Tube Armored Optical Cable (GYFY53)
JIANYE (All-dry) Stranded Loose Tube Armored Optical Cable (GYFY53)

JIANYE (All-dry) Stranded Loose Tube Armored Optical Cable (GYFY53)

Item No.: 017
INQUIRY
Description

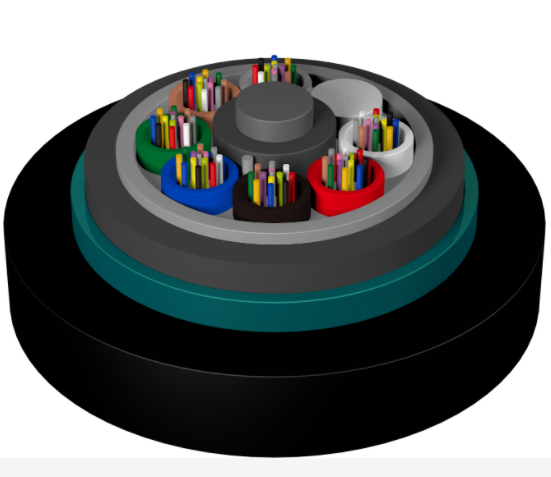

Optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with water block yarns. The tubes (and fillers) are stranded around the central strength member to form a cable core. The core is covered by water-blocking tape. Then an inner sheath is extruded and armored with corrugated steel tape. Finally, an outer PE sheath is extruded.
Features
• All-dry design improving efficiency of construction and splicing
• Light weight, easy for long distance installation
• Accurate process control ensuring good mechanical and temperature performances
• Excellent crush resistance and flexibility
• Applicable to duct and aerial installations

Technical Characteristics

Type Fibre count Units Tubes

Cable diameter

（mm）

Cable weight

（kg/km）

Tensile strength

Long/short term

（N

Crush

Long/short term

（N/100mm）
GYFY53-12Xn-All Dry 12 6 1 15.3 170 900/2700 1000/3000
GYFY53-24Xn-All Dry 24 6 2 15.3 170 900/2700 1000/3000
GYFY53-36Xn-All Dry 36 6 3 15.3 170 900/2700 1000/3000
GYFY53-48Xn-All Dry 48 6 4 15.3 170 900/2700 1000/3000
GYFY53-72Xn-All Dry 72 6 6 15.3 170 900/2700 1000/3000
GYFY53-96Xn-All Dry 96 8 8 16.9 220 900/2700 1000/3000
GYFY53-144Xn-All Dry 144 12 12 19.9 310 900/2700 1000/3000
GYFY53-288Xn-All Dry 288 24 24 22.5 380 900/2700 1000/3000













Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃

Delivery Length

• Standard length: 2,000m; other lengths are also available.
