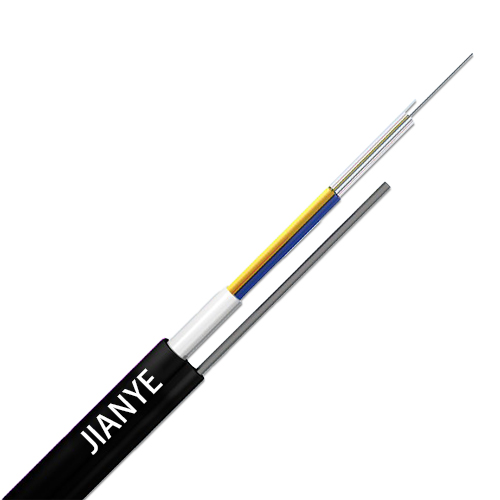

JIANYE 3-Unit Figure-8 Self-supporting Micro Optical Cable (GYFC8A (3U))
JIANYE 3-Unit Figure-8 Self-supporting Micro Optical Cable (GYFC8A (3U))

JIANYE 3-Unit Figure-8 Self-supporting Micro Optical Cable (GYFC8A (3U))

Item No.: 043
INQUIRY
Description
*Optical cable with low cost of materials and structures apply to the vast countryside

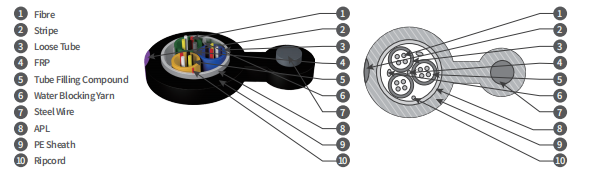

Optical fibres are housed in 3 loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes are stranded around the central strength member to form a cable core. The core is surrounded with water blocking yarns and armored with laminated aluminum tape. A steel wire is applied as the messenger. Finally, a figure-8 PE sheath is extruded. This type of cable is typically applicable to self-supporting aerial installation.

Features

• Figure-8 design, easy for self-supporting aerial installation, reducing installation costs
• Good mechanical and temperature performance
• Small size, light weight and soft, easy for installation
• Applicable to short distance self-supporting aerial installation


Technical Characteristics


Type

Cable size WxH

（mm）

Size of

messenger wire （mm）

Cable weight

（Kg/km）

Tensile strength

Long/short term （N）

Crush

Long/short term

（N/100mm）

Bending radius

Dynamic/static （mm）
GYFC8A(3U)-02~12Xn 12.5×7.5 1.6 62 600/1500 300/1000 160/80

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃

Delivery Length

• Standard length: 2,000m; other lengths are also available.
