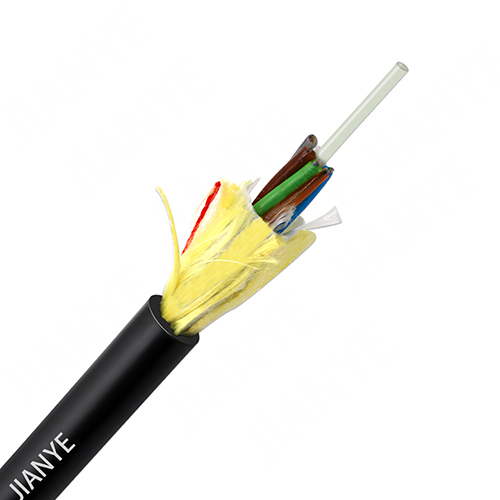

JIANYE's ADSS are All-Dielectric self supporting cable and single jacket designed for aerial installation. The optical fiber cable(ADSS) design provides no supporting part or messenger wire required. JIANYE provides for hardware part for installation with ADSS cable supporting on the pole. The cable inside multi-loose tube filled with a water resistant filling compound or design for waterblocked with water blocking material in side cable. The cable high tensile by aramid yarns and FRP strength member rod inside. Outer sheath made from HDPE.
Standards: JIANYE CABLE Manufacturer 'S ADSS Fiber Optical Cable complies with
IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794
Technical Characteristics
Due to the process innovation and technical breakthrough made on the basis of the conventional Single-mode fibre, FullBand ® low water peak Single-mode fibre has the following characteristics:
*Designed for operation over the full optical spectrum from 1260-1625 nm, which provides 50% more usable wavelengths and hence the transmission capacity is increased
*Outstanding optical performance supporting high-speed transmission technologies such as DWDM and CWDM
*Being compatible with existing 1310 nm equipment
*Good protection and excellent strip force stability
*Accurate geometrical parameters that insure low splicing loss and high splicing efficiency

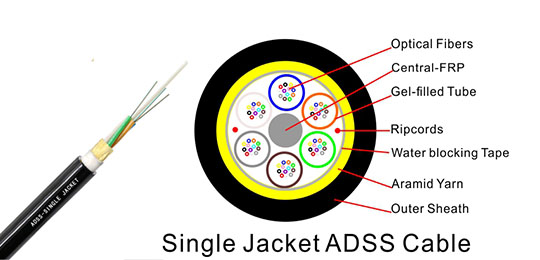

Structure&Dimensions and Descriptions
The standard optical cable structure is shown in the following table, other structure and fibre count are also available according to customer requirements.
| Item |
Contents |
Value G652.D |
| Fibers |
No. of Fibers |
12 |
24 |
48 |
96 |
| Structure |
Type |
1+5 |
1+5 |
1+5 |
1+8 |
| Loose tube |
Number x Fibers per tube |
2x6 |
4x6 |
4x12 |
8x12 |
| No. of Tubes (+Fillers) |
5 |
5 |
5 |
8 |
| Filling compound |
Thyrotrophic jelly compound |
| Material |
PBT (Polybutylene terephthalate) (natural or white color) |
| Diameter (nominal)/mm |
2.00 |
2.00 |
2.30 |
2.30 |
| Thickness (nominal)/mm |
0.30 |
0.30 |
0.35 |
0.35 |
Central Strength
Member |
FRP, Diameter (nominal)/mm |
1.6 |
1.6 |
1.8 |
3.0 |
| PE layer diameter (mm) |
- |
- |
- |
4.2 |
Water blocking
elements |
Material (cable core covering/filling) |
Water swellable yarn and Water blocking Tape |
Additional Strength
member |
Material |
Aramid yarn |
| Ripcords |
Material |
Polyester cords or Plastic thread. Color red |
| Number |
One |
Outer Sheath
(Jacket) |
Material |
UV-Proof High density black polyethylene (HDPE) |
| Thickness (nominal)/mm |
1.7 |
1.7 |
1.7 |
1.7 |
| Cable diameter (nominal)/mm |
9.8 |
10.2 |
10.2 |
13.4 |
Allowable
Maximum Span (m) |
200M |
| Cable weight |
Kg/km (nominal) |
75 |
80 |
90 |
128 |
| Packing |
Wooden reel, 2.0km/reel±0.5% |
940*700 |
940*700 |
1040*600 |
1040*600 |
Optical Fibre
Optical Fibres supplied in this specification meet the requirements of ITU-T G.652.D
| Parameter |
Specification |
| MFD (1310nm) |
9.2±0.4um |
| MFD (1550nm) |
10.4±0.5um |
| Cladding diameter |
125±0.7um |
| Fiber diameter |
245±7um, with UV coating, and colored to : 250±15um |
| Core/cladding concentricity error |
≤ 0.6um |
| Coating/cladding concentricity error |
≤ 12.0um |
| Cladding non circularity |
≤ 1.0% |
| Cut off wavelength |
λcc ≤1260nm |
| Attenuation coefficient |
1310nm: 0.35dB/km max after cabling
1550nm: 0.21dB/km max after cabling |
Bending-loss performance of optical fiber
@1310nm&1550nm |
≤0.05dB (100 turns around a mandrel of 50mm diameter) |
Polarization mode dispersion maximum
individual fibre |
≤0.1ps/km |
| Polarization mode dispersion link value |
≤0.06ps/km |
| Zero-dispersion wavelength |
1312±12nm |
| Zero-dispersion slope |
≤0.091ps/nm 2 ·km |
Application:
◆ Adopted to outdoor areial self-supporting installation
◆ Long-distance communication, local trunk line,
CATV & computer networks system, Telecom or
outside plant campus backbone applications
◆ Ethernet LAN Network, CCTV, Network Camera, PLC
◆ Mechanically, rugged, cable design for : Aerial, duct
Packaging and Drum
Cable Sheath Marking
Unless otherwise specified, the cable sheath marking shall be as follows:
Color: white
Contents: JIANYE, the year of manufacture, the type of cable, cable number, length marking
Interval: 1 m
Outer sheath marking legend can be changed according to user’s requests.
Reel Length
Standard reel length: 4 km/reel, other length is also available.
Cable Drum
The cables are packed in fumigated wooden drums.
Cable Packing
Both ends of the cable will be sealed with suitable plastic caps to prevent the entry of moisture during shipping, handling and storage. The inner end is available for testing.
