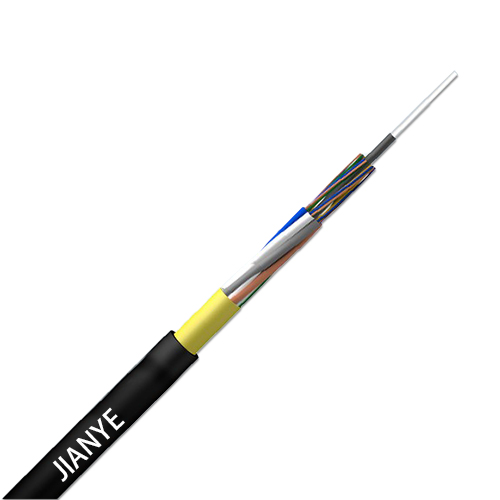

JIANYE(GJPFH) Indoor Micro-tube Breakout Optical Cable for Vertical Wiring
JIANYE(GJPFH) Indoor Micro-tube Breakout Optical Cable for Vertical Wiring

JIANYE(GJPFH) Indoor Micro-tube Breakout Optical Cable for Vertical Wiring

Item No.: 051
Optical indoor cable, bending insensitive or tight buffered fibers. large fibre count. LSZH and other properties used for such Vertical Wiring Buildings
INQUIRY
Description

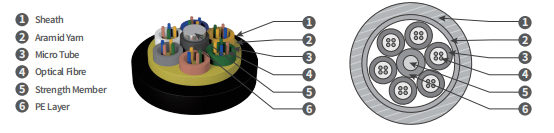

The indoor micro-tube breakout optical cable uses micro-tubes (made of optical fibres and special material) as optical sub-units. Sub-units are stranded around a non-metallic central strength member to form a cable core. Then a PVC sheath is extruded on the core. Other sheath materials are available on request.

Features

• Accurate process control ensuring good mechanical and temperature performances
• Good structure design, easy for branching and splicing
• Small size and light weight, easy for installation
• LSZH sheath ensuring good flame-retardant performance
• Especially applicable to vertical wiring in buildings


Technical Characteristics



Type

Cable diameter

（mm)

Fibre count

per tube

Cable weight

（Kg/km）

Tensile strength

Long/short term

（N）

Crush

Long/short term

（N/100mm）

Bending radius

Dynamic/static

（mm）
GJPFH-12Xn(2MB) 5.5 2 25 200/660 300/1000 20D/10D
GJPFH-24Xn(2MB) 7.1 2 40 200/660 300/1000 20D/10D
GJPFH-24Xn(4MB) 5.8 4 28 200/660 300/1000 20D/10D
GJPFH-24Xn(6MB) 6.1 6 31 200/660 300/1000 20D/10D
GJPFH-48Xn(4MB) 7.6 4 47 200/660 300/1000 20D/10D
GJPFH-48Xn(6MB) 6.5 6 35 200/660 300/1000 20D/10D
GJPFH-48Xn(12MB) 7.0 12 38 200/660 300/1000 20D/10D


Environmental Characteristics

• Transport/storage temperature: -20℃ to +60℃

Delivery Length

• Standard length: 2,000m; other lengths are also available.
