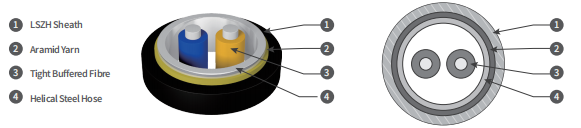

• All-dry design, green and environment-friendly
• Aramid yarns ensuring tensile strength and providing good protection for tight buffered fibres
• Metallic hose with good flexibility providing certain anti-rodent performance
• Outer sheath with flame-retardant performance, applicable to indoor installation
• Small size and light weight, easy for installation
• Applicable to indoor anti-rodent use
Technical Characteristics
| Type |
Fibre diameter (mm) |
Cable diameter (mm) |
Cable weight (Kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term （N/100mm） |
Bending radius Dynamic/static (mm) |
|---|---|---|---|---|---|---|
| GJFJKH-1Xn | 0.9 | 3.0 | 18 | 100/200 | 3000/5000 | 20D/10D |
| GJFJKH-2Xn | 0.9 | 4.8 | 38 | 200/400 | 3000/5000 | 20D/10D |
| GJFJKH-2Xn | 0.6 | 3.0 | 24 | 100/200 | 3000/5000 | 20D/10D |
• Transport/storage temperature: -20℃ to +60℃
• Standard length: 2,000m; other lengths are also available
