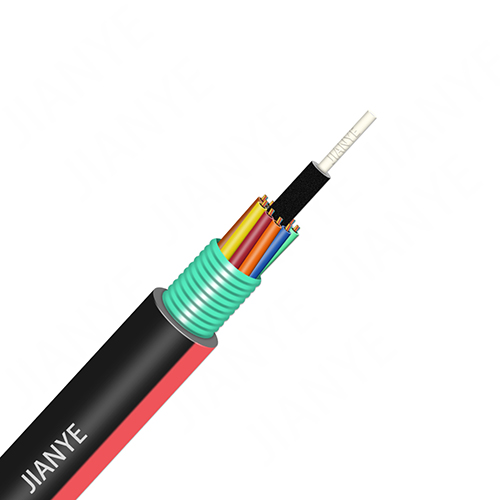

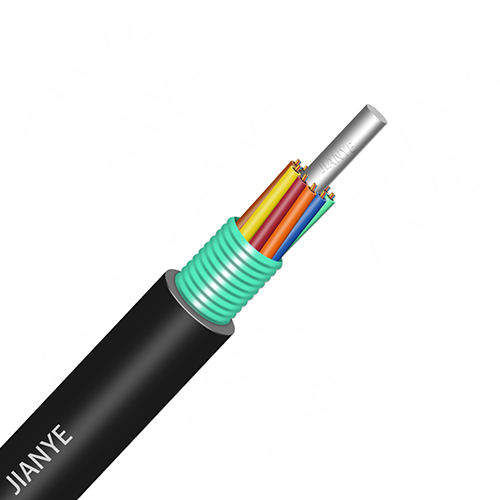

JIANYE GYTS GYFTS Fiber Optical Cable 2 To 288 Cores HDPE Jacket
JIANYE GYTS GYFTS Fiber Optical Cable 2 To 288 Cores HDPE Jacket JIANYE GYTS GYFTS Fiber Optical Cable 2 To 288 Cores HDPE Jacket

JIANYE GYTS GYFTS Fiber Optical Cable 2 To 288 Cores HDPE Jacket

Item No.: 016
Brand:OEM
JIANYE ensures a stable quality control system for our cable products through several programs including ISO 9001, ISO 14001 and OHS.
INQUIRY
Description

JIANYE Communication cable manufacturer that fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
GYTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.


Technical Characteristics
*The unique second coating and stranding technology provide the fibres with enough space and bending
endurance, which ensure good optical property of the fibres in the cable
*Accurate process control ensures good mechanical and temperature performance
*High quality raw material guarantees the long service life of cable

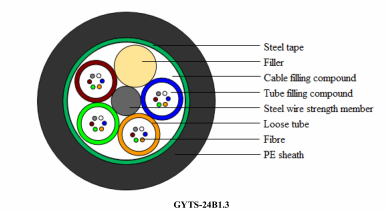

Dimensions and Descriptions
The standard optical cable structure is shown in the following table, other structure and fibre count are also
available according to customer requirements.
Item  Contents Value(G652.D)
4/8/12/24  96
Structure  Type  1+5  1+8
Loose tube Max Fiber counts/tube 6 12
Outer diameter (mm)  1.6  1.8
Central strength
member		 Material  Steel wire
Diameter (mm) 1.4  2.0
PE layer diameter(mm)  --  3.0
Water blocking  Material Cable filling compound
Armor  Material Steel tape
Sheath Material HDPE
Color  Black
Thickness (mm)  Nominal: 1.5
Cable diameter(mm) Approx. 8.7  10.9
Cable weight(kg/km) Approx.  80  125
Tension(N) 1500 2000
Crush(N/100mm) Short term  1500
  Long term 750
Optical Fibre
Optical Fibres supplied in this specification meet the requirements of ITU-T G.652.D
Parameter  Specification
MFD (1310nm) 8.7~9.5 um
Cladding diameter  125±1.0um
Fiber diameter  235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error  ≤ 0.6um
Coating/cladding concentricity error  ≤ 12.0um
Cladding non circularity  ≤ 1.0%
Cut off wavelength  λcc ≤1260nm
Attenuation coefficient 1310nm: 0.35dB/km max after cabling
1550nm: 0.21dB/km max after cabling
Bending-loss performance of optical fiber
@1310nm&1550nm		 ≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum
individual fibre		 ≤0.2ps/km
Polarization mode dispersion link value  ≤0.1ps/km
Zero-dispersion wavelength  1300~1324nm
Zero-dispersion slope  ≤0.092ps/nm 2 ·km
Our advantages
(1) Professional cable manufacturer
(2) About 15 years experiences in cable industry
(3) MOQ just 1Km
(4) ISO, UL , ROSH,REACH...certifications
(5) Can be customized production of fiber optic cable.

Fiber Optic Cable Mechanical Performance Testing Laboratory
(1) Main Testing Type: Precision Test and Mechanical Test.
(2) Precision Testing Machine: EXFO OTDR, EG&G PMD-440,CD-400.
(3) Mechanical Performance Testing : Temperature, Impact, Tensile, Bending, Torsion,
(4) Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.

Cable marking and cable reel marking
1.Cable marking
The cable sheath shall be marked with white characters at intervals of one meter with
following information:
(1) Purchaser’s name
(2) Cable type
(3) Fiber type and counts
(4) Year of manufacture
(5) Length marking
Notice: cable mark is available if requested by customer.
2 Cable reel
Details given below shall be marked with a weather materials on both outer sides of the
reel flange :
(1) Cable type and fiber counts
(2) Length of cable in meters
(3) Year of manufacture
Notice: shipping mark is available if requested by customer.
3 Packing Informations
(1) Packing material: Wooden drum
(2) Cable end protect material: waterproof-cap
(3) Packing length: standard length of cable shall be 4km. Other cable length is also
available if required by customer
Requirement for Order
(1) Fiber sort: Single mode:G652,G655,G657, Multi mode:OM1,OsM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) The fiber and tube color: according to stranded color, can be required.
(4) The cable Size: shall be in accordance with the table, can be required.
(5) Length of cable: generally is 4KM, can be required.
(6) Other requirement: can be negotiated.
