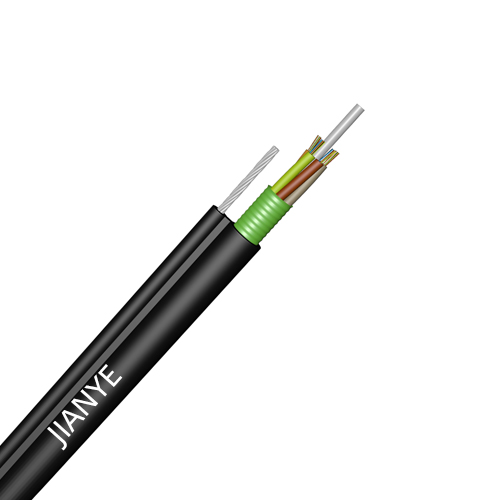

JIANYE (GYTC8S) Self-supporting Figure-8 Optical Cable
JIANYE (GYTC8S) Self-supporting Figure-8 Optical Cable JIANYE (GYTC8S) Self-supporting Figure-8 Optical Cable

JIANYE (GYTC8S) Self-supporting Figure-8 Optical Cable

Item No.: 055
Brand:OEM
JIANYE ensures a stable quality control system for our cable products through several programs including ISO 9001, ISO 14001 and OHS.
INQUIRY
Description

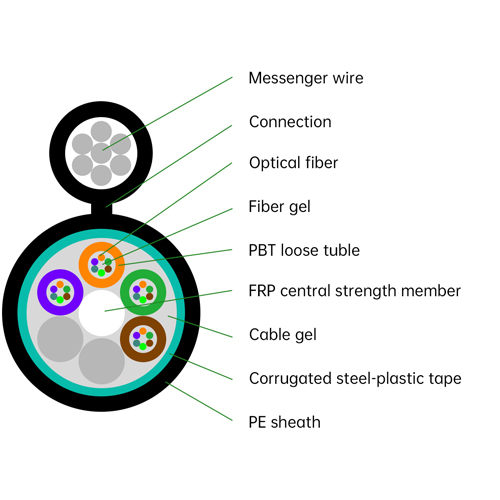

Optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with water blocking yarns. The tubes (and fillers) are stranded around the central strength member to form a cable core. The core is covered by water blocking tape and armored with steel tape. Stranded steel wires are applied as the messenger. Finally, a figure-8 PE outer sheath is extruded.
Technical Characteristics
● The unique second coating and stranding technology provide the fibres with enough space and bending
endurance, which ensure good optical property of the fibres in the cable
● Accurate process control ensures good mechanical and temperature performance
● High quality raw material guarantees the long service life of cable
Dimensions and Descriptions
The standard optical cable structure is shown in the following table, other structure and fibre count are also
available according to customer requirements.
Item Contents Value G.652.D
8/12/16 24
Structure Type  1+5
Loose tube Fiber counts/tube  4  6
Outer diameter (mm) 1.6
Central strength
member		 Material  Steel Wire
Diameter (mm) 1.4
PE layer diameter (mm) -----
Water blocking Material  Cable filling compound
Armor  Material  Steel tape
Messenger wire Material  7*1.0mm Stranding wire
Cable core part
sheath		 Material  HDPE
Color Black
Thickness (mm) Nominal: 1.5
Messenger part
sheath		 Material  HDPE
Color Black
Thickness (mm)  Nominal: 1.0
Cable diameter(mm) Approx. 8.7*16.0
Cable weight(kg/km) Approx.  150
Max allowable tension(N) 3000
Crush(N/100mm) Short term 1500
Long term 750
Optical Fibre
Optical Fibres supplied in this specification meet the requirements of ITU-T G.652.D
Parameter  Specification
MFD (1310nm)  8.7~9.5 um
Cladding diameter  125±1.0um
Fiber diameter  235~255um, with UV coating, and colored to : 250±15u
Core/cladding concentricity error  ≤ 0.6um
Coating/cladding concentricity error  ≤ 12.0um
Cladding non circularity  ≤ 1.0%
Cut off wavelength  λcc ≤1260nm
Attenuation coefficient 1310nm: 0.35dB/km max after cabling
1550nm: 0.21dB/km max after cabling
Bending-loss performance of optical fiber
@1310nm&1550nm		 ≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum
individual fibre		 ≤0.2ps/km
Polarization mode dispersion link value ≤0.1ps/km
Zero-dispersion wavelength  1300~1324nm
Zero-dispersion slope ≤0.092ps/nm 2 ·km

Our advantages
(1) Professional cable manufacturer
(2) About 15 years experiences in cable industry
(3) MOQ just 1Km
(4) ISO, UL , ROSH,REACH...certifications
(5) Can be customized production of fiber optic cable.

Fiber Optic Cable Mechanical Performance Testing Laboratory
(1) Main Testing Type: Precision Test and Mechanical Test.
(2) Precision Testing Machine: EXFO OTDR, EG&G PMD-440,CD-400.
(3) Mechanical Performance Testing : Temperature, Impact, Tensile, Bending, Torsion,
(4) Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.

Cable marking and cable reel marking
1.Cable marking
The cable sheath shall be marked with white characters at intervals of one meter with
following information:
(1) Purchaser’s name
(2) Cable type
(3) Fiber type and counts
(4) Year of manufacture
(5) Length marking
Notice: cable mark is available if requested by customer.
2 Cable reel
Details given below shall be marked with a weather materials on both outer sides of the
reel flange :
(1) Cable type and fiber counts
(2) Length of cable in meters
(3) Year of manufacture
Notice: shipping mark is available if requested by customer.
3 Packing Informations
(1) Packing material: Wooden drum
(2) Cable end protect material: waterproof-cap
(3) Packing length: standard length of cable shall be 4km. Other cable length is also
available if required by customer
Requirement for Order
(1) Fiber sort: Single mode:G652,G655,G657, Multi mode:OM1,OsM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) The fiber and tube color: according to stranded color, can be required.
(4) The cable Size: shall be in accordance with the table, can be required.
(5) Length of cable: generally is 4KM, can be required.
(6) Other requirement: can be negotiated.
