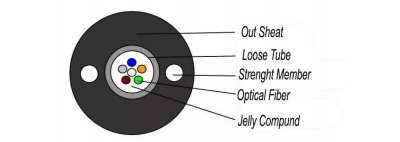

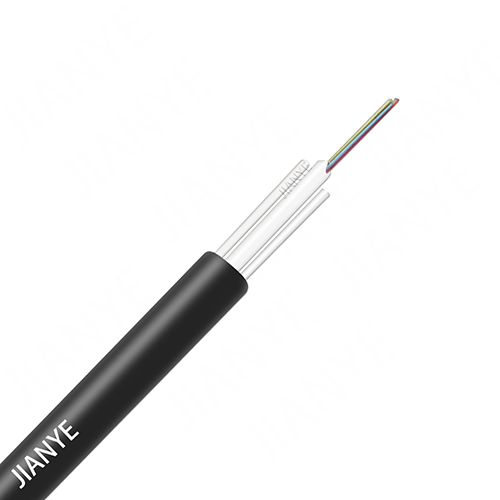

In the GYFXTY cable, single-mode/multimode fibres are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. The loose tube is covered with water-blocking materials to guarantee the compactness and longitudinal water-blocking performance. Two parallel FRP are placed at both sides of the cable core while a PE sheath is extruded over it.

Application: Duct/Aerial
Characteristics
*Excellent mechanical and temperature performance guaranteed by the accurate excess fibre length
*Critical protection to fibres, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube
*Special compact structure to avoid the loose tube shrinkage
*Excellent crush resistance and flexibility
*Two parallel steel wires could guarantee the tensile strength
*Excellent ultraviolet prevention with PE sheath
*Small diameter, light weight and installation friendliness
Technical Data

No. of fibers		6	12	24
Fiber Model		G.652D
Strength Member	Diameter (±0.05)	1.5
	NO.	2
Loose Tube	Diameter (±0.06) mm	2.1		2.8
	Diameter (±0.03) mm	0.35		0.40
	The Max. Core NO./Tube	6	12	24
Out Sheath (Material)		MDPE
Cable Diameter (± 0.2) mm		7.6		8.9
Cable Weight (±5) kg/km		48		66
Allowable Tensile Strength		2000N
Allowable Crush Resistance		1000N/100mm
Span		100m (No Ice, Wind 30m/s)
Min. Vending radius	Without Tension	10.0×Cable-φ
	Under Maximum Tension	20.0×Cable-φ
Temperature Range (°C)	Installation	-20~+60
	Transport &Storage	-40~+70
	Operation	-40~+70

Our advantages
(1) Professional cable manufacturer
(2) About 15 years experiences in cable industry
(3) MOQ just 1Km
(4) ISO, UL , ROSH,REACH...certifications
(5) Can be customized production of fiber optic cable.

Fiber Optic Cable Mechanical Performance Testing Laboratory
(1) Main Testing Type: Precision Test and Mechanical Test.
(2) Precision Testing Machine: EXFO OTDR, EG&G PMD-440,CD-400.
(3) Mechanical Performance Testing : Temperature, Impact, Tensile, Bending, Torsion,
(4) Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.

Cable marking and cable reel marking
1.Cable marking
The cable sheath shall be marked with white characters at intervals of one meter with
following information:
(1) Purchaser’s name
(2) Cable type
(3) Fiber type and counts
(4) Year of manufacture
(5) Length marking
Notice: cable mark is available if requested by customer.
2 Cable reel
Details given below shall be marked with a weather materials on both outer sides of the
reel flange :
(1) Cable type and fiber counts
(2) Length of cable in meters
(3) Year of manufacture
Notice: shipping mark is available if requested by customer.
3 Packing Informations
(1) Packing material: Wooden drum
(2) Cable end protect material: waterproof-cap
(3) Packing length: standard length of cable shall be 4km. Other cable length is also
available if required by customer
Requirement for Order
(1) Fiber sort: Single mode:G652,G655,G657, Multi mode:OM1,OsM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) The fiber and tube color: according to stranded color, can be required.
(4) The cable Size: shall be in accordance with the table, can be required.
(5) Length of cable: generally is 4KM, can be required.
(6) Other requirement: can be negotiated.
