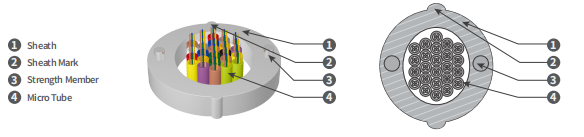

• Good structure design, easy for branching and splicing
• Small size and light weight, easy for installation
• LSZH sheath ensuring good flame-retardant performance
• Accurate process control ensuring good mechanical and temperature performances
• Especially applicable to pre-connection
Technical Characteristics
| Type |
Cable diameter （mm） |
Cable weight （Kg/km） |
Tensile strength Long/short term （N） |
Crush Long/short term （N/100mm） |
Bending radius Dynamic/static （mm） |
|---|---|---|---|---|---|
| GJPFWQH-12-36Xn | 8.5 | 60 | 200/500 | 300/1000 | 20D/10D |
| GJPFWQH-48-96Xn | 13.5 | 138 | 200/500 | 300/1000 | 20D/10D |
• Transport/storage temperature: -20℃ to +60℃
• Standard length: 1,000m; other lengths are also available.
