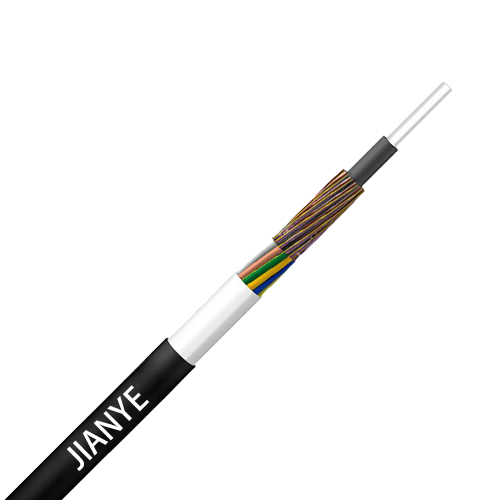

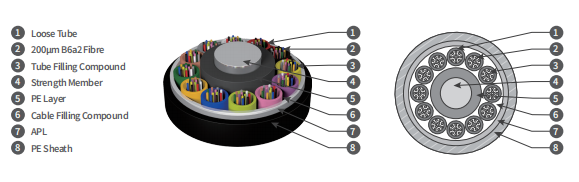

Down Sized 60-144F Duct Micro Cable (GYTA)

Features

• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing the key protection for fibres
• Using small-sized B6a2 fibres with good micro and macro bending performance
• Comply with IEC60794-3-11(2007): Optical fibre cables- Part 3-11
• Water resistance of optical cable is ensured by the following measures:
• Special water-blocking compound filled in loose tubes
• Laminated aluminum tape armor
• Cable filling compound ensuring longitudinal water resistance

Technical Characteristics


Type	Stranded units	Fibre count	Cable diameter （mm）	Cable weight （Kg/km）	Sheath thickness （mm）	Bending radius Dynamic/static （mm）
GYTA≤60B6a2(200μm)	5	≤60	6.9	48	1.2	20D/10D
GYTA-62-72B6a2(200μm)	6	62-72	7.1	53	1.2	20D/10D
GYTA-74-96B6a2(200μm)	8	74-96	8.1	72	1.2	20D/10D
GYTA-98-120B6a2(200μm)	10	98-120	9.0	89	1.2	20D/10D
GYTA-122-144B6a2(200μm)	12	122-144	9.8	110	1.2	20D/10D

Note:

1. For color arrangement of fibres and loose tubes, see the color sequence.

2. D is cable diameter.

Mechanical Characteristics


Environmental Characteristics


• Transport/storage temperature: -40℃ to +70℃
• Compound flow: No filling compound or coating compound drop out of optical cable at 70℃
• Water penetration: No water comes out within 24 hours after 1m water head is applied to the entire cross section of 3m long optical cable

Mechanical Performance Tests and Criteria


Test	Testing method	Conditions	Acceptance criteria
Tensile	IEC60794-1-21 method E1	TM = according to above table TL = 30% of TM.	The maximum fibre strain should not be higher than 0.6% under TM load Additional attenuation ≤0.1dB after test No damage to outer jacket and inner elements
Impact	IEC60794-1-21 method E4	Impact energy: 3J Impact number: 1 Impact points: 3	Additional attenuation ≤0.1dB after test No damage to outer jacket and inner elements
Crush	IEC60794-1-21 method E3	Load: 1000N/100mm Duration time: 1min	Additional attenuation ≤0.1dB after test No damage to outer jacket and inner elements
Torsion	IEC60794-1-21 method E7	Cycles:5 Length under test: 2m Turns: ± 180°	Additional attenuation ≤0.1dB after test No damage to outer jacket and inner elements
Repeated Bending	IEC60794-1-21 method E6	Bending radius: 20*D Cycles: 25	No damage to outer jacket and inner elements

Delivery Length
• Standard length: 4,000m; other lengths are also available
